Chopper's Battery Box

Chopper's Battery Box was derived from Cleofett's .dwg drawing files. However, as noted by TinyP the original 6.625 in tall battery box hits the body in 3-leg mode.

See TinyP's build log, page 8, scroll down to post #74

"One compromise that I already anticipated was the battery box
hitting the body when in 3-leg mode so I had to adjust the
height of the box closer to 6" instead of 6.5".


Picture Left & text above from TinyP's Build log

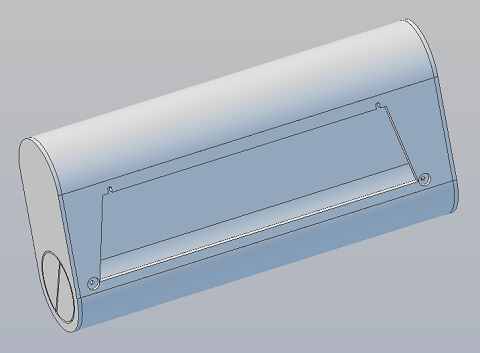

Chopper's Battery Box - this is the 6 in version turned to show the side that mounts to the foot. This is a ver 0 design!

The image is linked to a 3D .pdf file

You can download a zip of the battery box files, which includes a 3D .stp file,  here

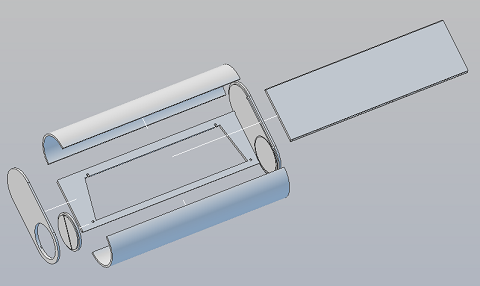

Chopper's Battery Box - this is the 6 in version in an exploded view. This is a ver 0 design!

The image is linked to a 3D .pdf file

This design is copyright Media-Conversions LLC and is made available for non-commercial use only.
